Masked Saliency Maps

1. Imports

import json
import pickle
from pathlib import Path

import numpy as np
import torch
import pandas as pd
import matplotlib.pyplot as plt

from fours.models.noise import FourSNoise
from fours.utils.data_handling import read_fours_root_dir, load_adi_data
from fours.utils.masks import construct_rfrr_mask

root_dir = Path(read_fours_root_dir())

Data in the FOURS_ROOT_DIR found. Location: /fast/mbonse/s4

2. Input gradients for S4

# Load the noise model
noise_model_file = root_dir / Path("70_results/x1_fake_planet_experiments/HD22049_351_096_C-0679_A_/scratch/tensorboard_S4/models/noise_model_0000_lambda_010000.pkl")

s4_noise_model = FourSNoise.load(noise_model_file)

# Compute the input gradients
s4_noise_model.compute_betas()
input_gradients_4s = np.abs(s4_noise_model.betas.detach().numpy())
input_gradients_4s = input_gradients_4s.reshape(-1, 91, 91)

3. Input gradients for PCA

3.1 Load the data

dataset_name = "HD22049_351_096_C-0679_A_"
dataset_file = root_dir / Path("30_data/" + dataset_name + ".hdf5")

science_data, angles, raw_psf_template = load_adi_data(
    dataset_file,
    data_tag="object_stacked_05",
    psf_template_tag="psf_template",
    para_tag="header_object_stacked_05/PARANG")

psf_template = np.median(raw_psf_template, axis=0)

# we cut the image to 91 x 91 pixel to be slightly larger than 1.2 arcsec
cut_off = int((science_data.shape[1] - 91) / 2)
science_data = science_data[:, cut_off:-cut_off, cut_off:-cut_off]

3.2 Compute the PCA basis using SVD

# 1.) Convert images to torch tensor
im_shape = science_data.shape
images_torch = torch.from_numpy(science_data)

# 2.) remove the mean as needed for PCA
images_torch = images_torch - images_torch.mean(dim=0)

# 3.) reshape images to fit for PCA
images_torch = images_torch.view(im_shape[0], im_shape[1] * im_shape[2])

# 4.) compute PCA basis
_, _, V = torch.svd(images_torch)

3.3 Find optimal number of PCA components

cc_result_file = root_dir / Path("70_results/x1_fake_planet_experiments/contrast_curves/HD22049_351_096_C-0679_A_.pkl")

with open(cc_result_file, 'rb') as f:
    tmp_data = pickle.load(f)

all_cc_combined = pd.concat(tmp_data.values(), keys=tmp_data.keys(), axis=1)
# drop all columns that start with s4
all_cc_combined = all_cc_combined.loc[:, ~all_cc_combined.columns.get_level_values(0).str.startswith("s4")]
# round the index
all_cc_combined.index = np.round(all_cc_combined.index, 1)

# find the best number of PCA components at 2.5 lambda/D
best_pca = all_cc_combined.loc[2.5].argmax()
all_cc_combined.columns[best_pca][0]

'stacked_05_PCA_090_components'

pca_number = 90

3.4 Compute the input gradients

input_gradients_pca = torch.matmul(V[:, :pca_number], V[:, :pca_number].T)
input_gradients_pca = np.abs(input_gradients_pca.detach().numpy())
input_gradients_pca = input_gradients_pca.reshape(-1, 91, 91)

3.5 Maks input gradients

mask = construct_rfrr_mask(
    cut_off_radius=3.6 * 1.5,
    psf_template_in=psf_template,
    mask_size_in=91,
    use_template=False
)

input_gradients_pca = input_gradients_pca * mask

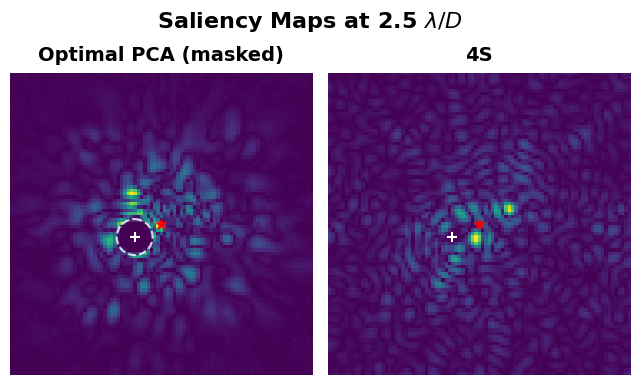

4. Plot the result

def plot_saliency_map(
    axis_in,
    input_gradients,
    position):

    idx = position[0] * 91 + position[1]
    axis_in.imshow(input_gradients[idx])
    axis_in.axis("off")

    axis_in.scatter(position[1], position[0], color="white", marker="+", s=50)
    axis_in.scatter(45, 45, color="red", marker="*", s=50)

# compute the distance between the point and the center
def distance_to_center(position):
    center = np.array([45, 45])
    return np.linalg.norm(np.array(position) - center)

# distance of position 1
distance_to_center((49, 37)) / 3.6

2.4845199749997664

position = (49, 37)

# 1.) Create the Plot Layout ------------------------------
fig = plt.figure(
    constrained_layout=False,
    figsize=(8, 4))

gs0 = fig.add_gridspec(1, 2, width_ratios = [1, 1])
gs0.update(wspace=0.05, hspace=0.07)

# Residual Plots
example_pca = fig.add_subplot(gs0[0, 0])
example_4s = fig.add_subplot(gs0[0, 1])

plot_saliency_map(example_pca, input_gradients_pca, position)
plot_saliency_map(example_4s, input_gradients_4s, position)

# plot a dashed circle at the given position in the PCA plot
circle = plt.Circle(
    (position[1], position[0]),
    3.6 * 1.5,
    color="white",
    fill=False,
    alpha=0.8,
    linestyle="--",
    linewidth=1.5)

example_pca.add_artist(circle)

# Add Figure Title
example_pca.set_title(
    "Optimal PCA (masked)",
    fontsize=14,
    fontweight="bold",
    y=1.01)

example_4s.set_title(
    "4S",
    fontsize=14,
    fontweight="bold",
    y=1.01)

fig_title = fig.suptitle(
    "Saliency Maps at 2.5 $\lambda/D$",
    size=16, fontweight="bold", y=1.03)


fig.patch.set_facecolor('white')
plt.savefig("./final_plots/0a5_maked_sailency_map.pdf",
            bbox_inches='tight')
