Figure 10: AF Lep b residuals#
1. Imports#
[1]:
from pathlib import Path
import numpy as np
from scipy.ndimage import gaussian_filter
# Plotting
import cmocean
import matplotlib.pylab as plt
color_map = cmocean.cm.ice
# Methods
from fours.models.psf_subtraction import FourS
from fours.utils.pca import pca_psf_subtraction_gpu
from fours.utils.data_handling import save_as_fits
from fours.utils.data_handling import read_fours_root_dir
# Evaluation
from applefy.utils.file_handling import load_adi_data
from applefy.detections.uncertainty import compute_detection_uncertainty
from applefy.utils.photometry import AperturePhotometryMode
from applefy.statistics import TTest
2. Load the Dataset#
[2]:
root_dir = Path(read_fours_root_dir())
Data in the FOURS_ROOT_DIR found. Location: /fast/mbonse/s4
[3]:
dataset_file = root_dir / Path("30_data/HD35850_294_088_C-0085_A_.hdf5")
experiment_root_dir = root_dir / Path("70_results/x2_af_lep/")
[4]:
science_data, angles, raw_psf_template_data = load_adi_data(
dataset_file,
data_tag="object_selected",
psf_template_tag="psf_selected",
para_tag="header_object_selected/PARANG")
science_data = science_data[:, 25:-25, 25:-25]
# Background subtraction of the PSF template
psf_template_data = np.median(raw_psf_template_data, axis=0)
[5]:
science_data.shape
[5]:
(13809, 115, 115)
[6]:
fwhm = 3.6
pixel_scale = 0.0271
2.1 Temporal binning#
[7]:
binning = 5 # stack every 5 frames
angles_stacked = np.array([
np.mean(i)
for i in np.array_split(angles, int(len(angles) / binning))])
science_stacked = np.array([
np.mean(i, axis=0)
for i in np.array_split(science_data, int(len(angles) / binning))])
3. Run \(S^4\)#
[8]:
lambda_reg = 25000
[9]:
work_dir = experiment_root_dir / Path("S4")
work_dir.mkdir(exist_ok=True)
[10]:
s4_model = FourS(
science_cube=science_stacked,
adi_angles=angles_stacked,
psf_template=psf_template_data,
device=0,
work_dir=work_dir,
verbose=True,
rotation_grid_subsample=1,
noise_model_lambda=lambda_reg,
psf_fwhm=fwhm,
right_reason_mask_factor=1.5)
[11]:
s4_model.fit_noise_model(
num_epochs=100,
training_name="AF_Lep_" + str(lambda_reg),
logging_interval=1)
S4 model: Fit noise model ...
[DONE]
[12]:
s4_mean_residual, _ = s4_model.compute_residuals()
S4 model: computing residual ... [DONE]
[13]:
# save the residual
save_as_fits(
s4_mean_residual,
experiment_root_dir / Path("AF_Lep_s4_residual.fits"),
overwrite=True)
4. Compute the S/N#
[14]:
position = (68.5, 54.8) # Result from MCMC
# Use pixel values spaced by the FWHM
photometry_mode_planet = AperturePhotometryMode("AS", search_area=0.5, psf_fwhm_radius=fwhm/2)
photometry_mode_noise = AperturePhotometryMode("AS", psf_fwhm_radius=fwhm/2)
[15]:
a, b, snr_mean = compute_detection_uncertainty(
frame=s4_mean_residual,
planet_position=position,
statistical_test=TTest(),
psf_fwhm_radius=fwhm,
photometry_mode_planet=photometry_mode_planet,
photometry_mode_noise=photometry_mode_noise,
safety_margin=1.,
num_rot_iter=50)
print("S4 reaches a S/N of " + str(np.round(np.mean(snr_mean), 1)))
S4 reaches a S/N of 6.8
5. Compute PCA#
[16]:
num_components = [20, 60]
[17]:
pca_residuals = pca_psf_subtraction_gpu(
images=science_stacked,
angles=angles_stacked,
pca_numbers=num_components,
device=0,
verbose = True)
Compute PCA basis ...[DONE]
Compute PCA residuals ...[DONE]
6. Create the plot#
[18]:
def get_xy_position(angle, distance_arsec, center):
angle_radians = np.deg2rad(angle - 90)
distance = distance_arsec /pixel_scale
# Calculate x and y coordinates
x = distance * np.cos(angle_radians)
y = distance * np.sin(angle_radians)
return center - x, center - y
[19]:
def plot_residual(
axis_in,
residual_frame,
zoom=10):
median= np.median(residual_frame)
scale = np.max(np.abs(residual_frame))
axis_in.imshow(
residual_frame[zoom:-zoom, zoom:-zoom],
cmap=color_map,
vmin=median - scale*0.5, vmax=median + scale,
origin="lower")
axis_in.set_xticks([])
axis_in.set_yticks([])
center = int(residual_frame[zoom:-zoom, zoom:-zoom].shape[0] / 2)
axis_in.scatter(center, center, c='w', marker='*', s=30)
size_position = 5
axis_in.hlines([5, ],
xmin=size_position,
xmax=size_position + int(0.5 / pixel_scale),
color='w', lw=2)
axis_in.text(
x=size_position +int(0.5 / pixel_scale / 2) ,
y=7,
s='0.5"', color='w', ha='center', va='bottom',
fontsize=10,
fontweight="bold")
axis_in.vlines(x=90, ymin=5, ymax=15, color='w')
axis_in.hlines(y=5, xmin=80, xmax=90, color='w')
axis_in.text(x=90, y=15, s='N', color='w', ha='center', va='bottom', fontsize=10)
axis_in.text(x=78, y=5, s='E', color='w', ha='right', va='center', fontsize=10)
[20]:
# --------------------------------------------------------------------

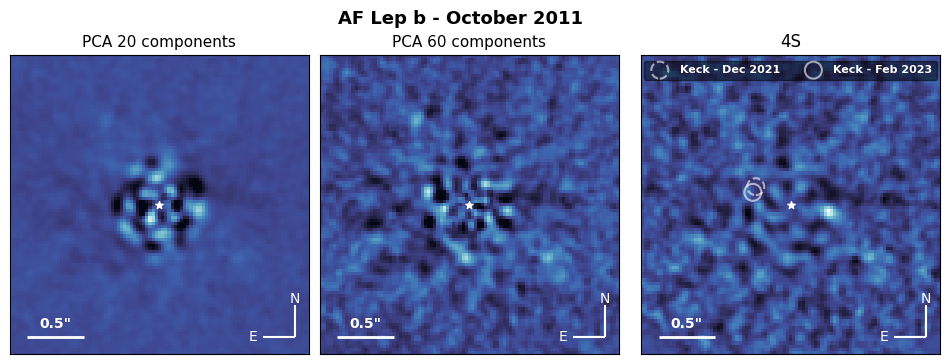

# 1.) Create Plot Layout
fig = plt.figure(constrained_layout=False, figsize=(12, 6))
gs0 = fig.add_gridspec(1, 4, width_ratios=[1, 1, 0.0, 1])
gs0.update(hspace=0.0, wspace=0.05)
ax_pca1 = fig.add_subplot(gs0[0])
ax_pca2 = fig.add_subplot(gs0[1])
ax_s4 = fig.add_subplot(gs0[3])
# --------------------------------------------------------------------
# 2.) Plot the residuals
plot_residual(ax_pca1, gaussian_filter(
pca_residuals[0], sigma=(0.8, 0.8),order=0))
plot_residual(ax_pca2, gaussian_filter(
pca_residuals[1], sigma=(0.8, 0.8),order=0))
plot_residual(ax_s4, gaussian_filter(
s4_mean_residual, sigma=(0.8, 0.8), order=0))
# --------------------------------------------------------------------
# 3.) Mark the Keck observations
zoom = 10
center = int(s4_mean_residual[zoom:-zoom, zoom:-zoom].shape[0] / 2)
ax_s4.scatter(*get_xy_position(62.8, 0.338, center),
c='none',
edgecolor="w",
linestyle="dashed",
marker='o',
alpha=0.6, lw=1.5,
label="Keck - Dec 2021",
s=150)
ax_s4.scatter(*get_xy_position(72.0, 0.342, center),
#marker="+",
#color="lightgreen",
c='none',
edgecolor="w",
linestyle="-",
marker='o',
alpha=0.6,
lw=1.5,
label="Keck - Feb 2023",
s=150)
# --------------------------------------------------------------------
# 4.) Add the Legend
lgd = ax_s4.legend(
ncol=2, fontsize=8,
loc='lower center',
framealpha=0.5,
facecolor=(0, 0, 0, 0),
edgecolor=(0, 0, 0, 0),
labelcolor='white',
prop={'weight': 'bold',
'size' : 8},
bbox_to_anchor=(0.5, 0.9))
# --------------------------------------------------------------------
# 5.) Add Titles
ax_s4.set_title("4S", fontsize=12)
ax_pca1.set_title("PCA 20 components", fontsize=11)
ax_pca2.set_title("PCA 60 components", fontsize=11)
st = fig.suptitle(
"AF Lep b - October 2011",
fontsize=13, fontweight="bold", y=0.82)
# 6.) Save the figure
plt.savefig("./final_plots/06_AF_Lep.pdf",
bbox_extra_artists=(st,),
bbox_inches='tight')
