Figure 5: Retained Flux

1. Imports

import json
from pathlib import Path

import numpy as np

import matplotlib.pyplot as plt
import matplotlib.gridspec as gridspec
import seaborn as sns

from applefy.detections.contrast import Contrast
from applefy.utils.file_handling import load_adi_data
from applefy.utils import flux_ratio2mag
from applefy.utils.photometry import AperturePhotometryMode

from fours.detection_limits.applefy_wrapper import PCADataReductionGPU
from fours.utils.data_handling import read_fours_root_dir
from fours.utils.setups import contrast_grid_setup_1

2. Load the dataset

dataset_name = "HD22049_303_199_C-0065_C_"
root_dir = Path(read_fours_root_dir())
json_file = root_dir / Path("30_data/" + dataset_name + ".json")

Data in the FOURS_ROOT_DIR found. Location: /fast/mbonse/s4

experiment_root_dir = root_dir / Path("70_results/x1_fake_planet_experiments/" + dataset_name)
experiment_root_dir.mkdir(exist_ok=True)

with open(json_file) as f:
    parameter_config = json.load(f)

dit_psf_template = float(parameter_config["dit_psf"])
dit_science = float(parameter_config["dit_science"])
fwhm = float(parameter_config["fwhm"])
scaling_factor = float(parameter_config["nd_scaling"])
lambda_reg = float(parameter_config["lambda_reg"])
svd_approx = int(parameter_config["svd_approx"])
pixel_scale=0.02718

dataset_file = root_dir / Path("30_data/" + dataset_name + ".hdf5")

science_data, angles, raw_psf_template_data = load_adi_data(
    dataset_file,
    data_tag="object_stacked_05",
    psf_template_tag="psf_template",
    para_tag="header_object_stacked_05/PARANG")

psf_template = np.median(raw_psf_template_data, axis=0)

# we want the image to show the innermost 1.2 arcsec
print(1.2 / pixel_scale * 2)

88.30022075055187

# we cut the image to 91 x 91 pixel to be slightly larger than 1.2 arcsec
cut_off = int((science_data.shape[1] - 91) / 2)
science_data = science_data[:, cut_off:-cut_off, cut_off:-cut_off]

3. Create Contrast Instance

contrast_instance = Contrast(
    science_sequence=science_data,
    psf_template=psf_template,
    parang_rad=angles,
    psf_fwhm_radius=fwhm / 2,
    dit_psf_template=dit_psf_template,
    dit_science=dit_science,
    scaling_factor=scaling_factor,
    checkpoint_dir=experiment_root_dir)

# get fake planet setup
flux_ratios, separations, num_fake_planets = contrast_grid_setup_1(fwhm)

contrast_instance.design_fake_planet_experiments(
    flux_ratios=flux_ratios,
    num_planets=num_fake_planets,
    separations=separations,
    overwrite=True)

Overwriting existing config files.

4. Restore PCA results

pca_algorithm_function = PCADataReductionGPU(
        approx_svd=8000,
        pca_numbers=[10, 50, 60, 70, 80, 90, 100],
        device="cpu",
        work_dir=None,
        special_name="stacked_05",
        verbose=False)

contrast_instance.run_fake_planet_experiments(
    algorithm_function=pca_algorithm_function,
    num_parallel=1)

Running fake planet experiments...

100%|█████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 946/946 [00:55<00:00, 17.07it/s]

[DONE]

5. Compute the throughput

# Use pixel values spaced by the FWHM
photometry_mode_planet = AperturePhotometryMode("F")
photometry_mode_noise = AperturePhotometryMode("P")

contrast_instance.prepare_contrast_results(
    photometry_mode_planet=photometry_mode_planet,
    photometry_mode_noise=photometry_mode_noise)

contrast_results_1 = contrast_instance.contrast_results["stacked_05_PCA_080_components"]
throughput_results_1 = contrast_results_1.compute_throughput().T

6. Create the Plot

throughput_results_1.index = np.round(flux_ratio2mag(throughput_results_1.index), 2)
throughput_results_1.columns = np.round((throughput_results_1.columns/3.6), 2)
throughput_results = throughput_results_1.iloc[:19, :].iloc[::2, ::2]

from matplotlib.colors import LogNorm

def plot_throughput(axis_in,
                    tmp_throughput_results,
                    color_bar):

    c_bar_kargs = dict(orientation = "vertical",
                       label = r"Retained flux")

    heat = sns.heatmap(tmp_throughput_results,
                       vmax=0.0, vmin=0.4,
                       annot=True,
                       cmap="YlGnBu",
                       ax=axis_in,
                       norm=LogNorm(),
                       cbar_ax=colorbar_ax,
                       annot_kws={"fontsize":11},
                       cbar_kws=c_bar_kargs)

    ylabels = ['{:d}'.format(int(float(x.get_text()))) for x in heat.get_yticklabels()]
    _=heat.set_yticklabels(ylabels)

# 1. Create the plot layout ---------------------------------------
fig = plt.figure(constrained_layout=False, figsize=(8, 5))

gs0 = fig.add_gridspec(1, 2, width_ratios = [1, 0.05])
gs0.update(wspace=0.05)

gs1 = gridspec.GridSpecFromSubplotSpec(
    1, 1, subplot_spec = gs0[0],
    hspace=0.12)
gs2 = gridspec.GridSpecFromSubplotSpec(
    3, 1, subplot_spec = gs0[1],
    height_ratios=[0.1, 0.8, 0.1])

throughput_ax1 = fig.add_subplot(gs1[0])
colorbar_ax = fig.add_subplot(gs2[1])

# 2. Plot the throughput table ------------------------------------
plot_throughput(throughput_ax1, throughput_results,
                color_bar=False)
throughput_ax1.tick_params(
    axis='both', which='major', labelsize=12)

# 3. Create the colorbar ------------------------------------------
cbar = throughput_ax1.collections[0].colorbar
cbar.ax.tick_params(labelsize=14)
throughput_ax1.figure.axes[-1].yaxis.label.set_size(14)

# 4. Labels -------------------------------------------------------
throughput_ax1.set_ylabel(
    r"Fake Planet Contrast [mag]", size=14)
throughput_ax1.set_xlabel(
    r"Separation [$\lambda /D$]", size=14)

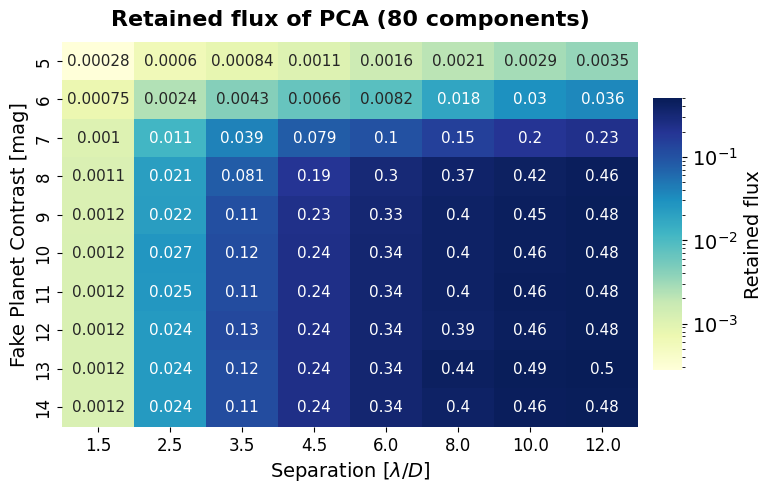

throughput_ax1.set_title("Retained flux of PCA (80 components)", y=1.02, size=16, fontweight="bold")

fig.patch.set_facecolor('white')
plt.savefig("./final_plots/04_Throughput.pdf", bbox_inches='tight')
